Electronic Speed Switches
Electronic Speed Switches Specification
- Mechanical Life
- Long Life Years
- IP Rating
- 66
- Rated Voltage
- 240 Volt (V)
- Warranty
- one year
- Max. Current
- 5 Ampere (amp)
- Material
- DIE CAST ALUMINIUM
- Max. Voltage
- 240 Volt (V)
- Size
- 210*135*95 mm
- Color
- Blue Paint coated
- Weight
- Differ as per size Kilograms (kg)
Electronic Speed Switches Trade Information
- Minimum Order Quantity
- 5 Pieces
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 100 Pieces Per Month
- Delivery Time
- 7 Days
- Sample Available
- Yes
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India

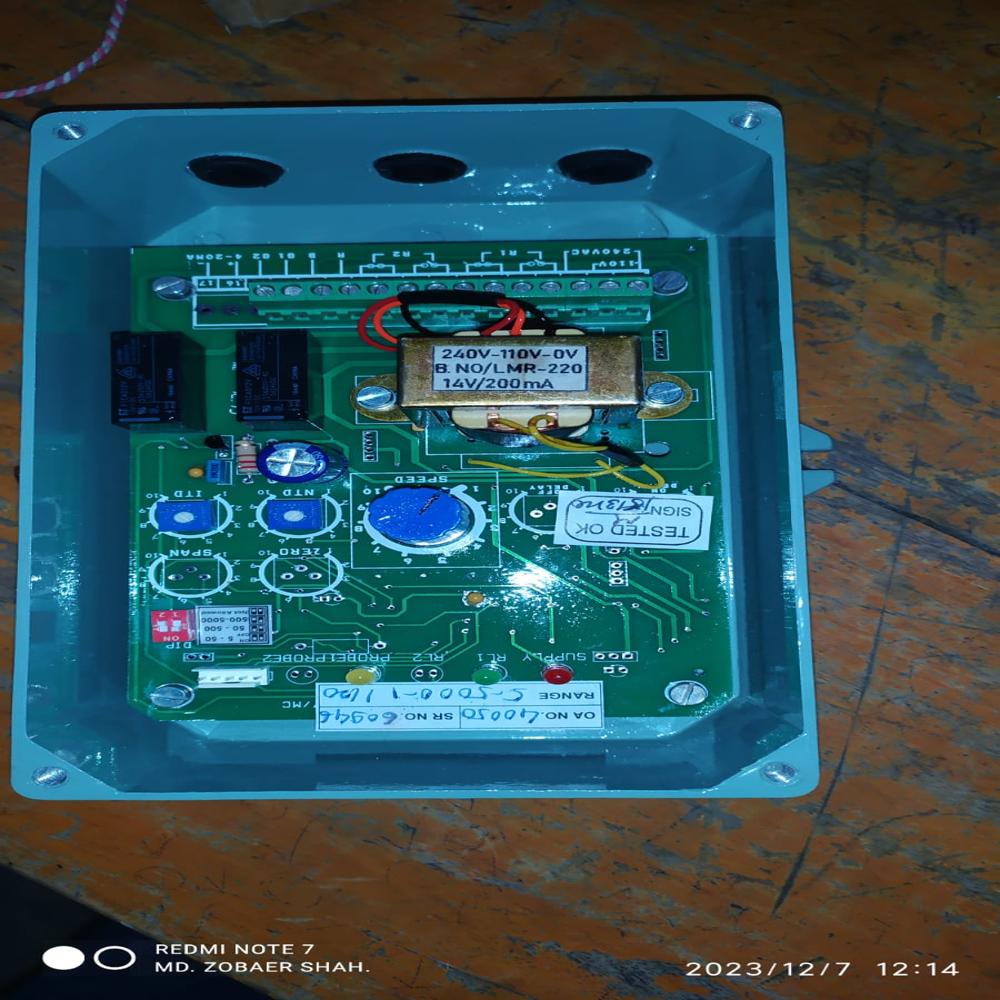

About Electronic Speed Switches
PRODUCT : Electronic Speed Switch-with SP
TYPE RM E211-NITD-CA 22-B30-
Speed Range : 10-100 RPM
Calibrated For : 4 IMP / Rev
HSN Code : 90328990
Make : Jayashree
QUANTITY :15
NOS
SPECIFICATIONS
A) Control Unit
DUTY : UNDER SPEED SWITCH
SUPPLY VOLTAGE : 110-230V AC
TIME DELAY : ITD & NTD
TIME DELAY RANGE : 1-30 SEC
SPEED INDICATION : LED
SPEED SETTING : POTENTIOMETER
ENCLOSURE MATERIAL : CAST ALUMINIUM
ENCLOSURE DIMENSIONS : 210*135*95 MM
GASKET : NITRILE RUBBER
PAINT SHADE : LIGHT GRAY EPOXY( 631 OF IS5)
Page 2 of 2
CABLE ENTRY : 3 NOS PLUG
RELAY : 2NO + 2NC
CONTACT RATING : 5A @ 110V AC /230V AC / 24V DC
FASTENERS : MS
TERMINAL : PHEONIX
PROTECTION GRADE : IP66
B) Sensor Probe
SENSOR PROBE TYPE : INDUCTIVE SENSOR PROBE
TERMINATION : 3 WIRE DC
SENSOR PROBE SUPPLY VOLTAGE : 12 VDC
SENSOR PROBE ENCLOSURE MATERIAL : NICKEL PLATED
BRASS TUBE
SENSOR PROBE ENCLOSURE DIMENSIONS : NF M30*65MM
SENSING DISTANCE : 15 MM 10%
AMBIENT TEMPERATURE : UP TO 55C
CABLE DETAILS : RBG 0.4 SQ MM PVC GRAY
CABLE LENGTH : 2 MTR
