Pull Cord Switch

Pull Cord Switch Specification

Max. Current
16 Ampere (amp)

IP Rating
66

Rated Voltage
240 Volt (V)

Mechanical Life
Long Life Years

Warranty
one year

Material
DIE CAST ALUMINIUM

Max. Voltage
240 Volt (V)

Color
Blue Paint coated

Pull Cord Switch Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Pull Cord Switch

A pull cord switch is a type of electrical switch that is operated by pulling a cord or chain. It is commonly used in applications like ceiling fans, industrial machinery, or emergency stop devices. When you pull the cord, it either opens or closes an electrical circuit, turning the connected device on or off.

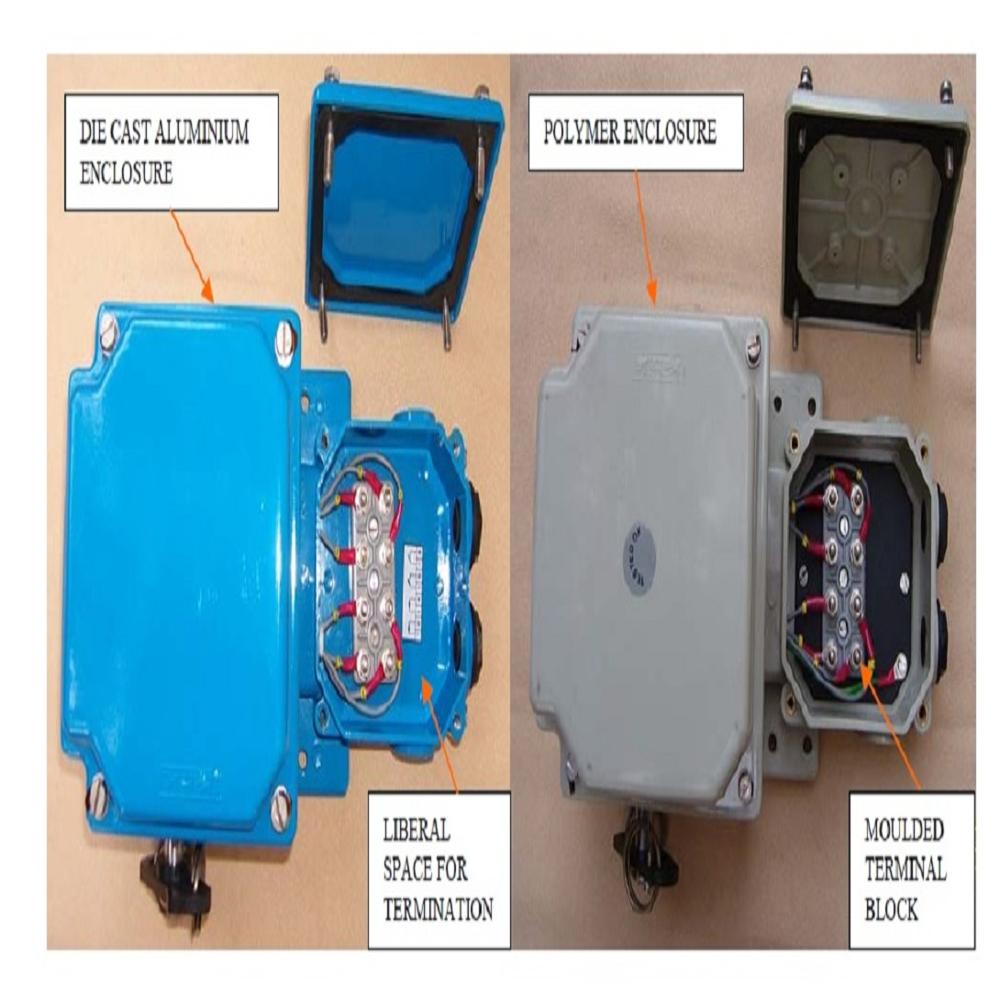

SPECS FOR : SW-4030E22 MODEL SW-4030 ENCLOSURE DIE CAST ALUMINIUM MECHANISM 1-0 POSITION UNIQUE TOGGLE TYPE STAYPUT MECHANISM PROVIDED SNAP ACTION & LOCAL MANUAL RESET CONTACT COMBINATION 2NO+2NC CONTACT RATING 10 AMPS RESISTIVE @ 240V AC 50HZ GRADE OF PROTECTION IP-66 PAINT SHADE 176 PHIROZI BLUE AS PER IS:5 CABLE ENTRY 2 NOS. 19MM (3/4") BS CONDUIT THREAD QUOTATION
